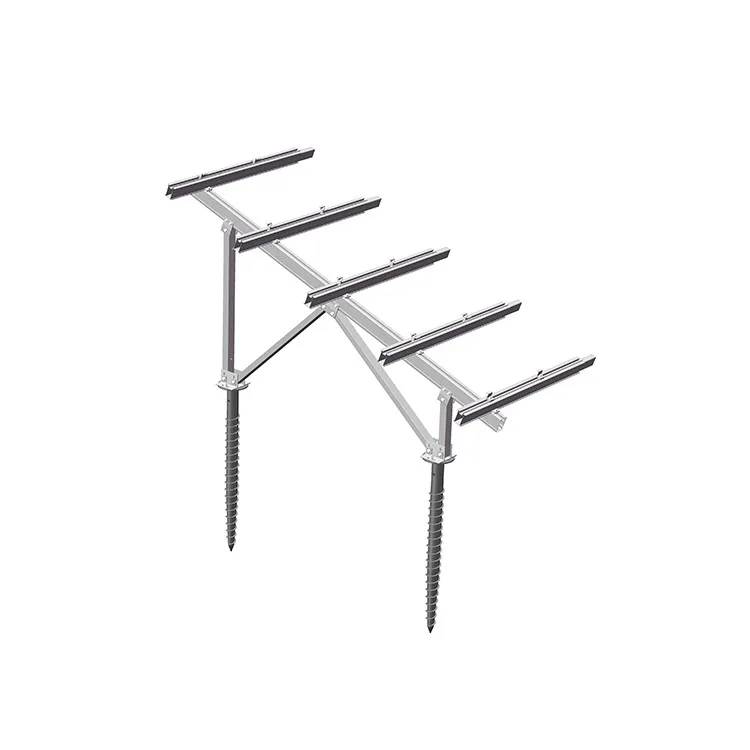

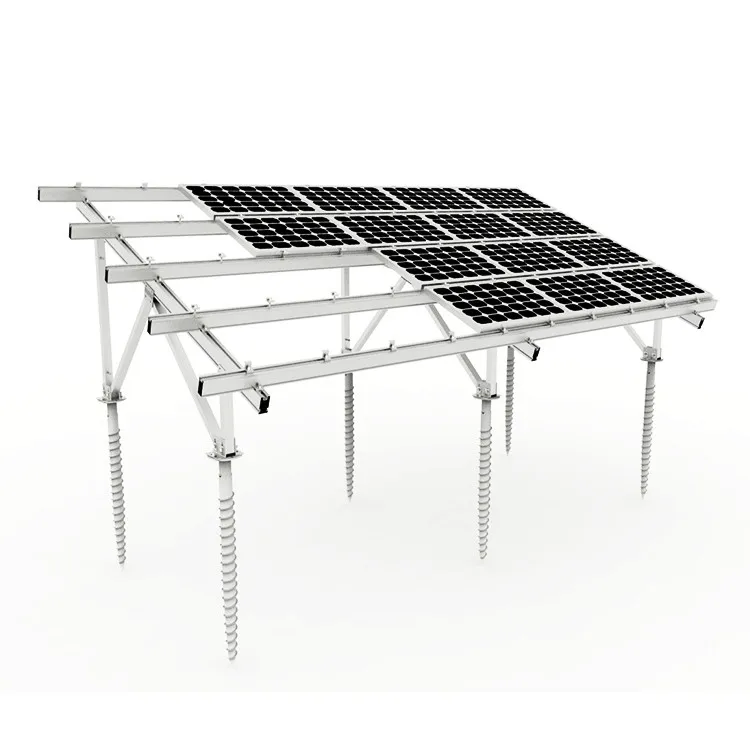

Product Description

The ground mounted aluminium solar panel system is a practical ground mounted solution for site installations from commercial to municipal, providing the mounting frame at the highest pre-assembly stage. The building can be adapted to a variety of site conditions and the optimised design was carried out by experienced structural engineers, which is essential for high wind and snow loads. Depending on the cost of the project, the system is fixed to the ground with bolts or concrete foundations, with variable slopes and heights allowing for flexible design.

1.Technical Information

2.Features

• Products using aluminum alloy 6005-T5 (AL6005-T5) and stainless steel 304 (SUS 304), high strength, corrosion resistance is good

• Most of the components are pre-assembled before shipment, there is no need to drilling, cutting and other operations on site, simply adjust locking to complete the installation

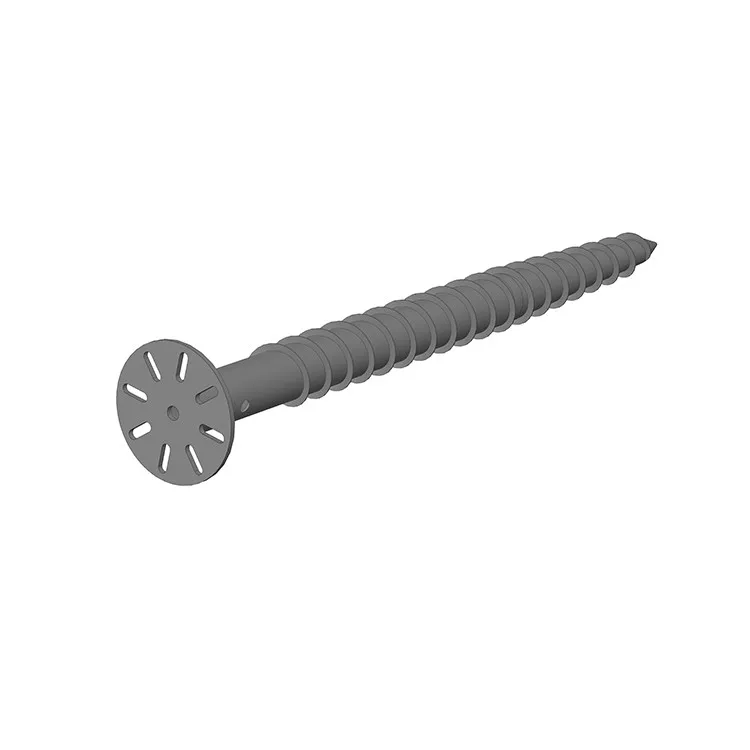

• Ground screws and concrete foundations optional

• Compatible with most modules and most wind loads.

• Smart design reduce the difficulty of the installation on the most condition.

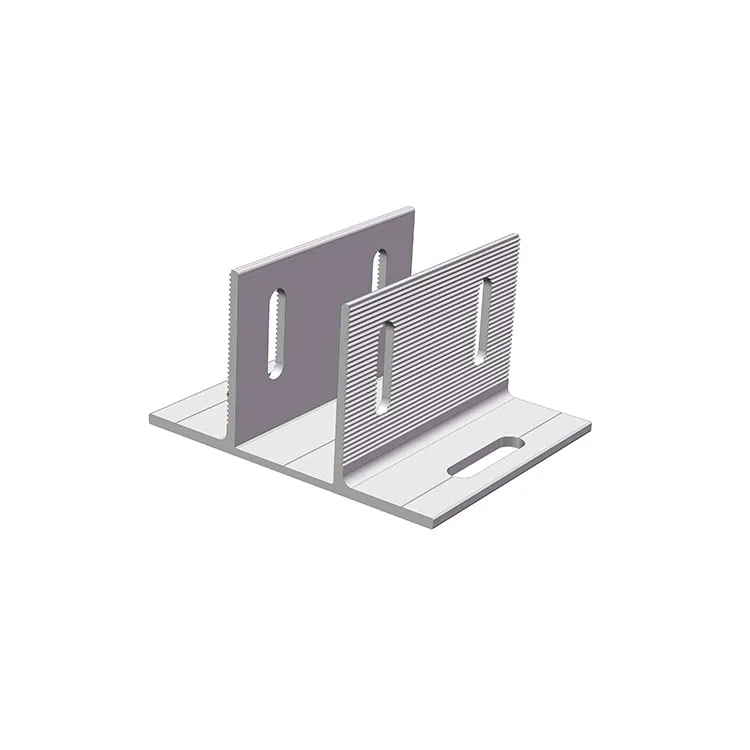

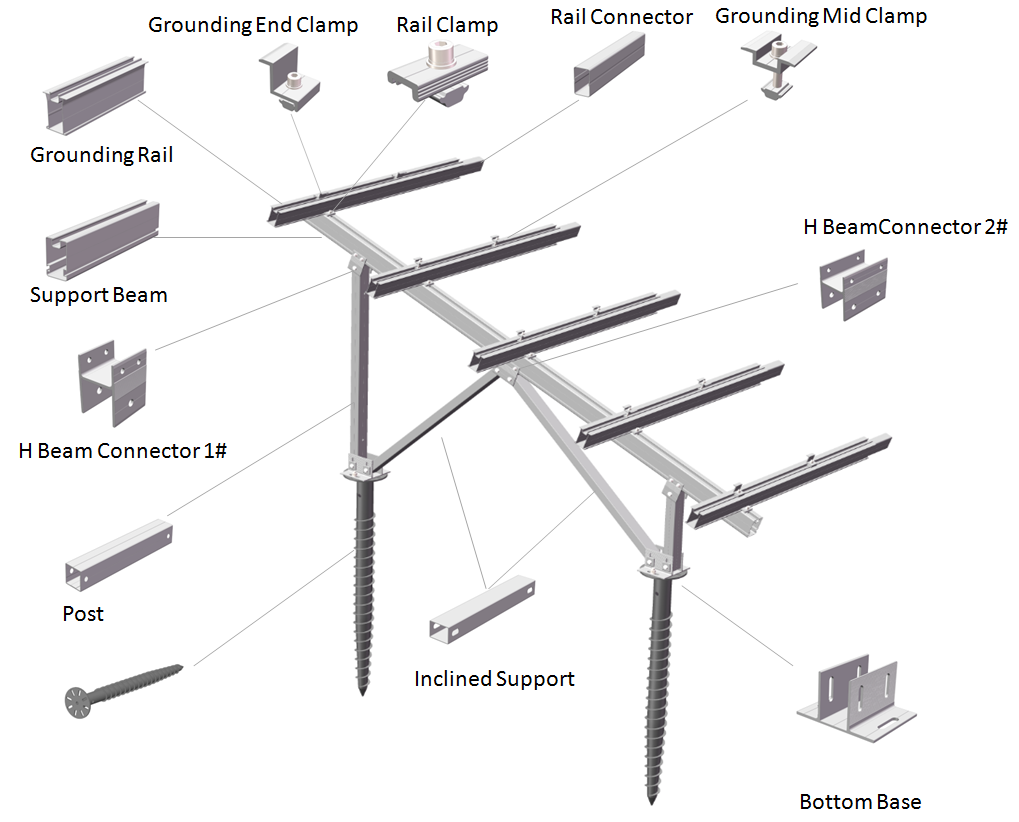

Overview of system components

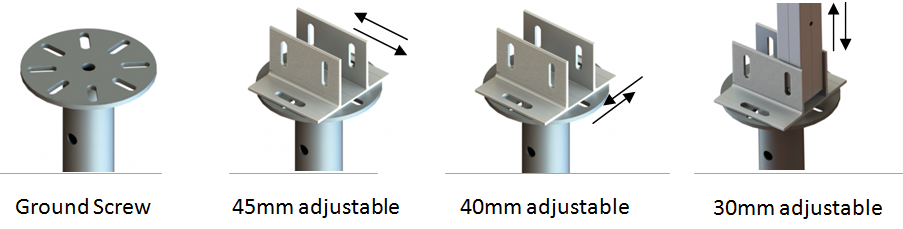

Adjustable Range

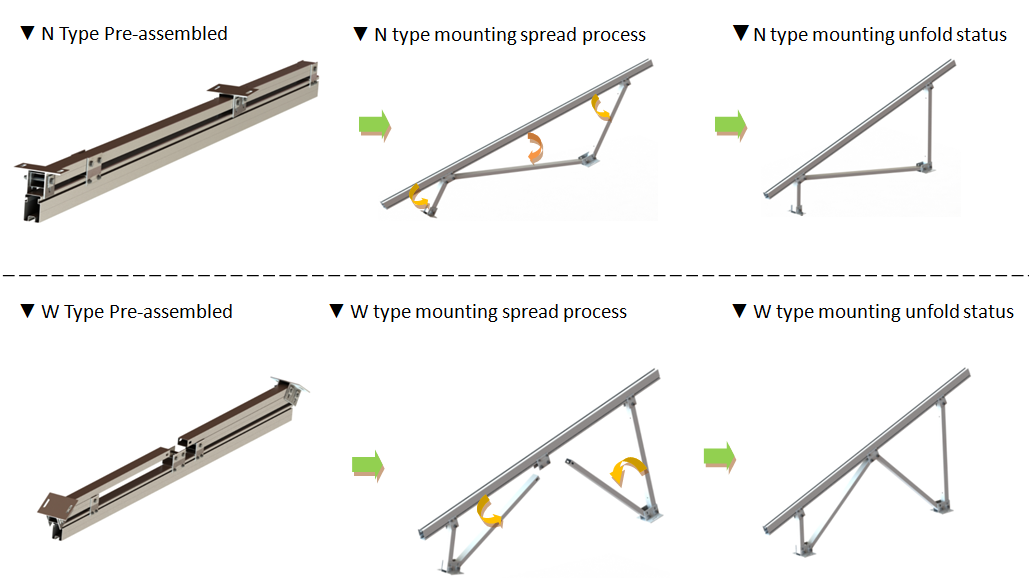

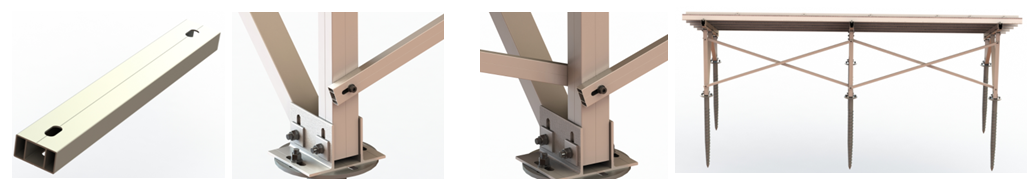

Pre-assembled Mounting Parts

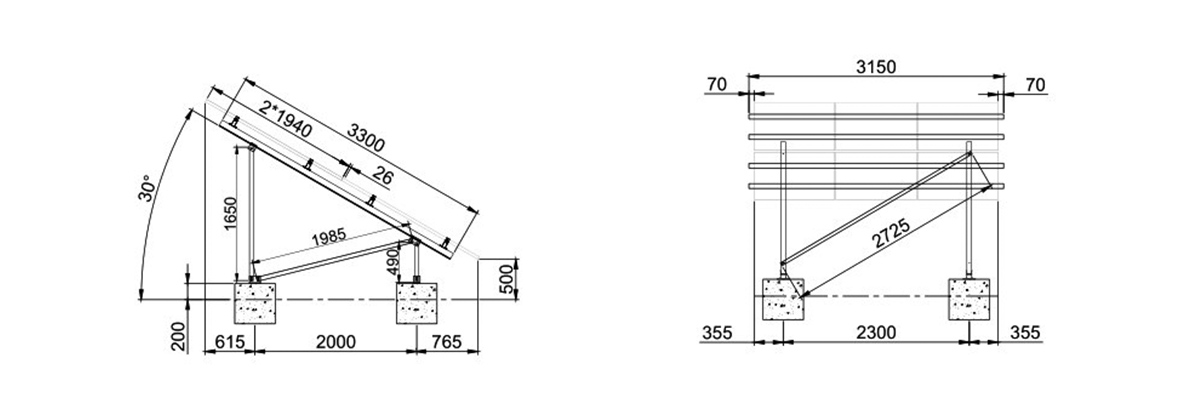

Back Support Structure Installation Guide

Free Design

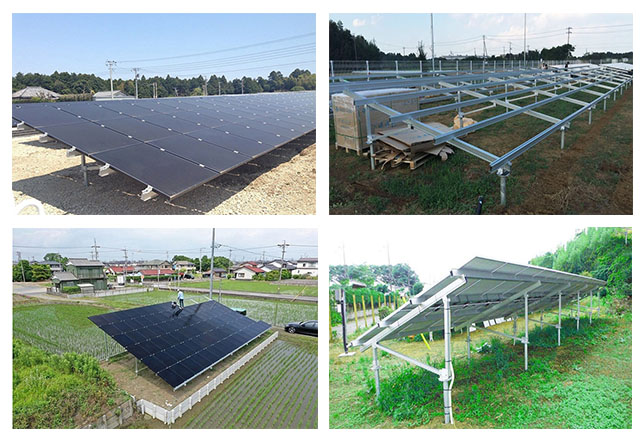

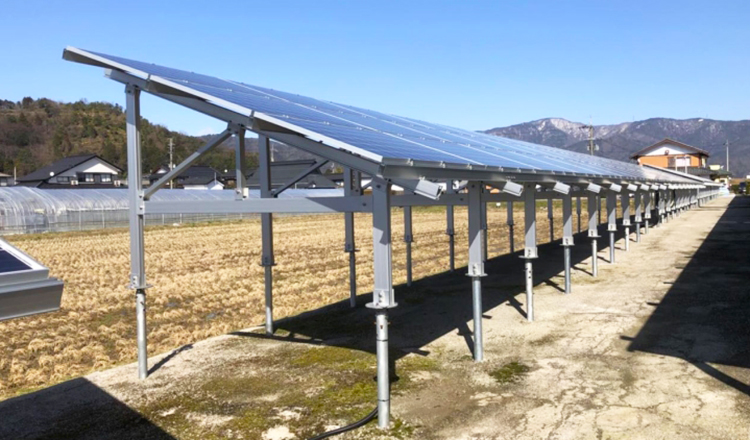

Project Reference
