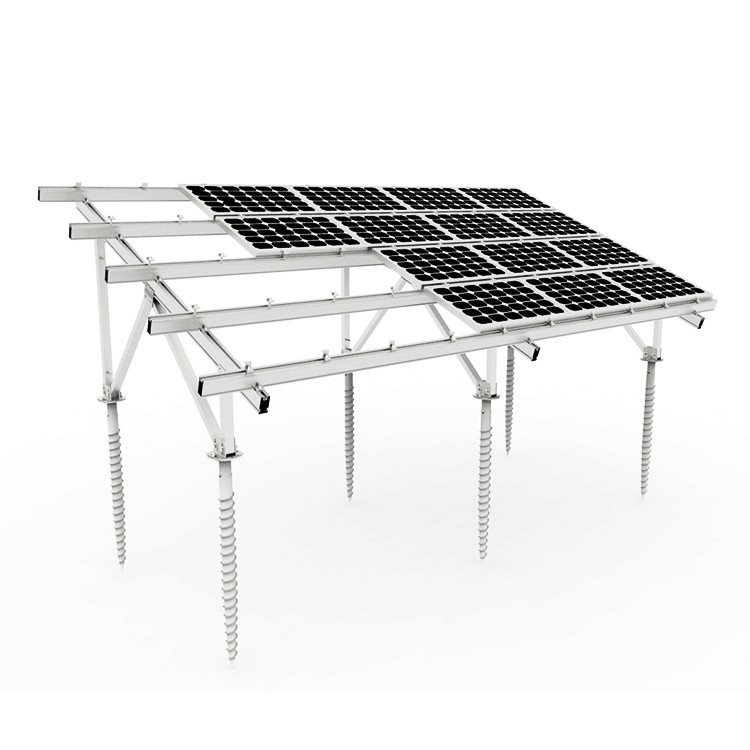

Aluminum Solar Ground Mounting System
Product Description
The ground mounted aluminium solar panel system is a practical ground mounted solution for site installations from commercial to municipal, providing the mounting frame at the highest pre-assembly stage. The building can be adapted to a variety of site conditions and the optimised design was carried out by experienced structural engineers, which is essential for high wind and snow loads. Depending on the cost of the project, the system is fixed to the ground with bolts or concrete foundations, with variable slopes and heights allowing for flexible design.
1.Technical Information
| Install Site | Open Terrain |
| Tilt Angle | 5°~60° |
| Snow Load | 1.5KN/m² |
| Module Orientation | Landscape or Portrait |
| Foundation Type | Concrete Base or Ground Screw |
| Material | Aluminum 6005-T5 (AL6005-T5), Stainless Steel 304 (SUS 304) |
| Design Standard | JIS C8955：2011 |
| Warranty | 12 years quality guaranty |
2.Features
- Products using aluminum alloy 6005-T5 (AL6005-T5) and stainless steel 304 (SUS 304), high strength, corrosion resistance is good
- Most of the components are pre-assembled before shipment, there is no need to drilling, cutting and other operations on site, simply adjust locking to complete the installation

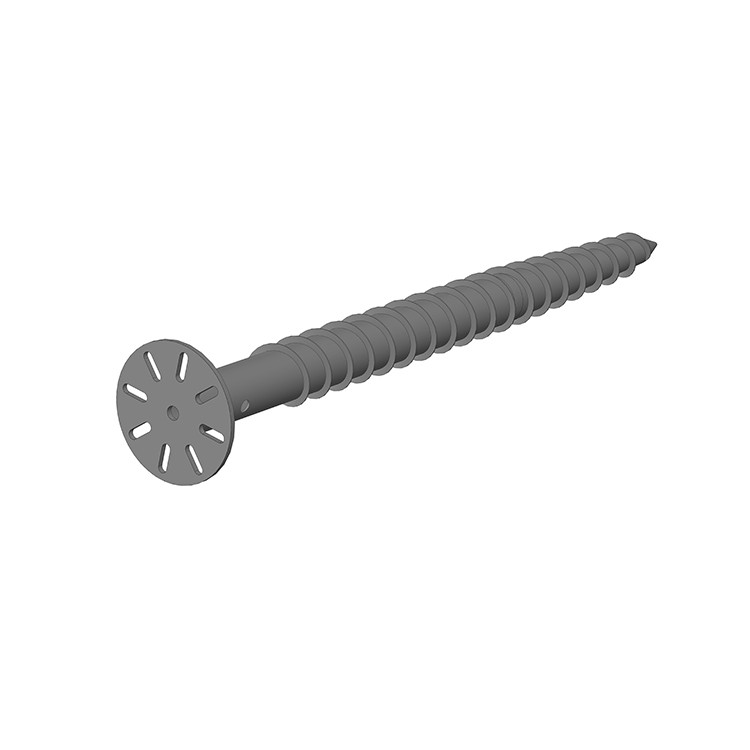

- Ground screws and concrete foundations optional
- Compatible with most modules and most wind loads.
- Smart design reduce the difficulty of the installation on the most condition.

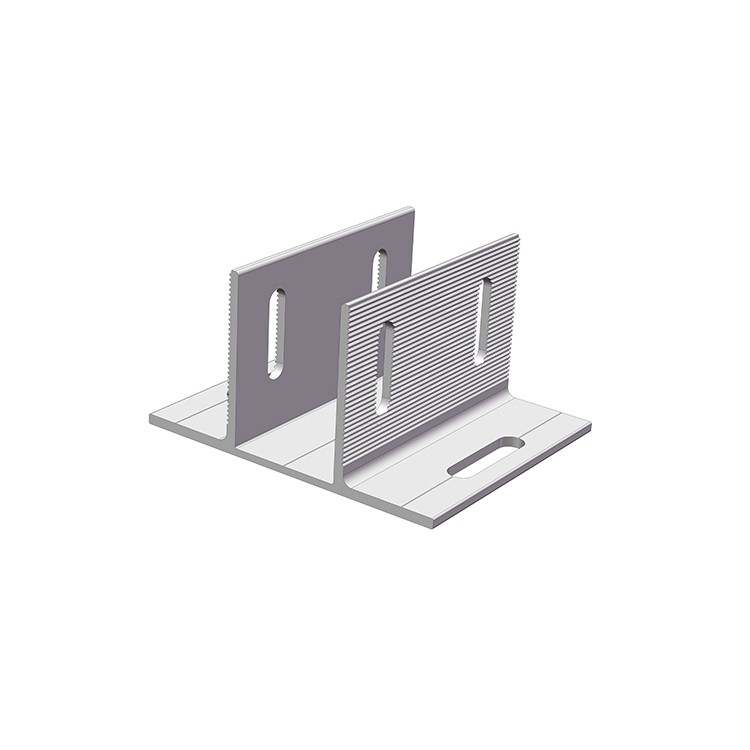

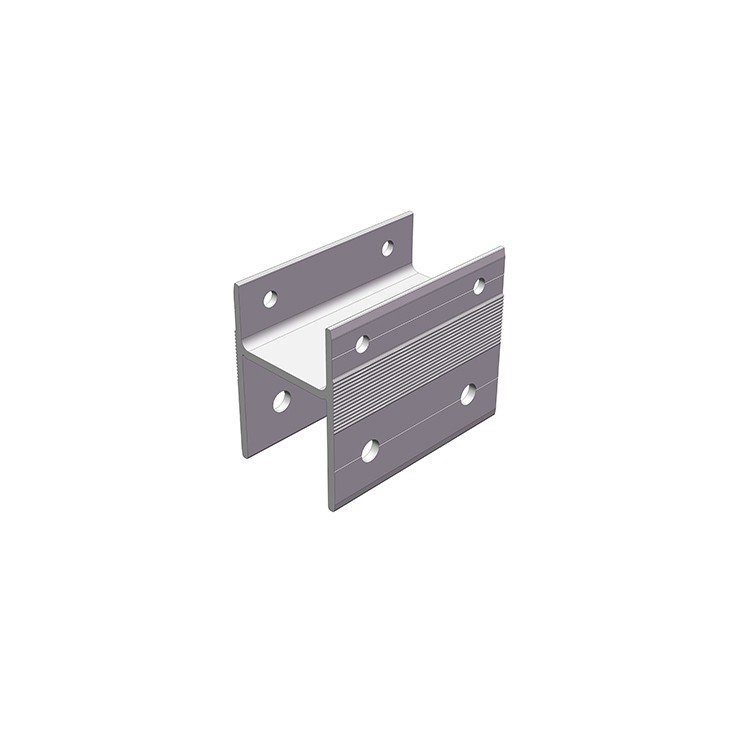

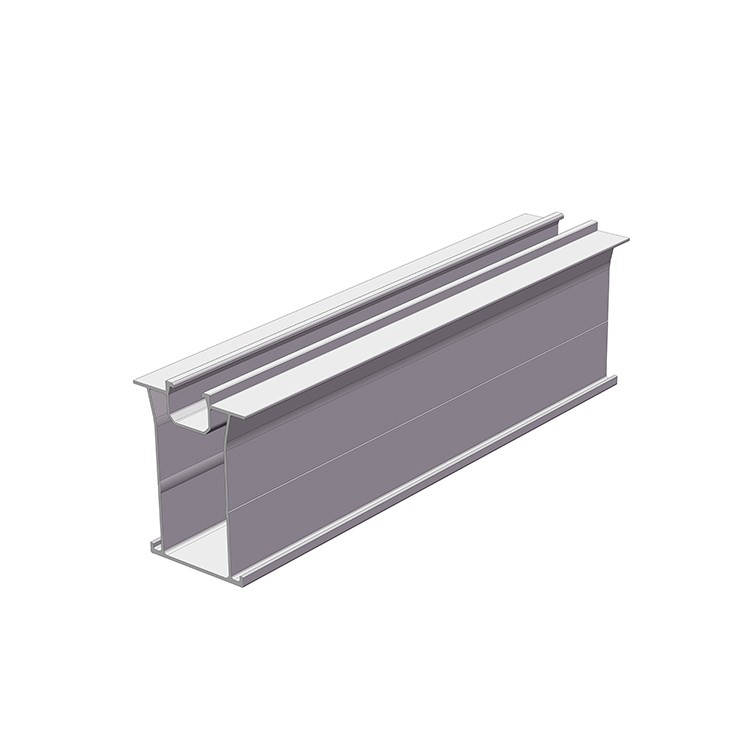

Overview of system components
Adjustable Range
Pre-assembled Mounting Parts

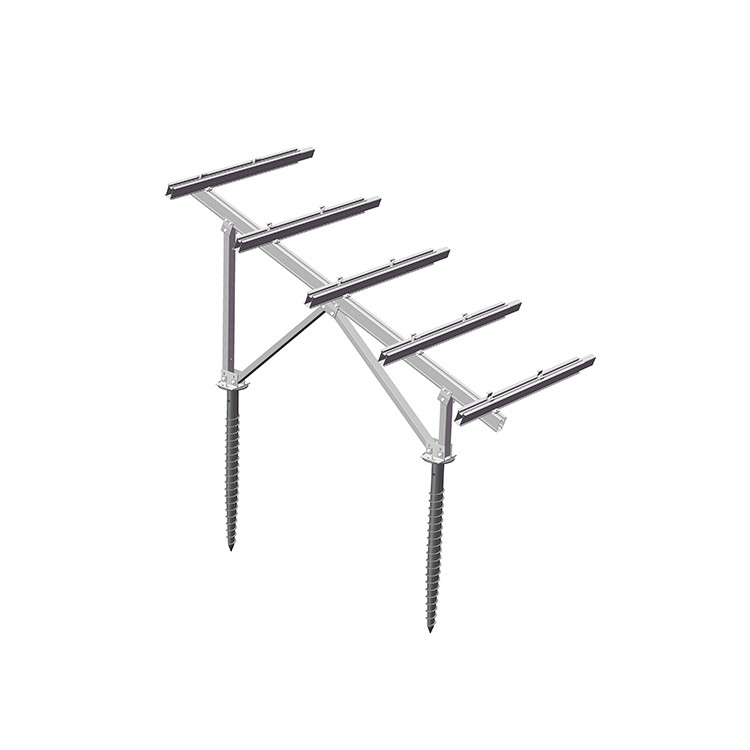

Back Support Structure Installation Guide
Free Design
Project Reference
Our advantage
GLOBAL SERVICE
With 12 years of industry expertise, we’ve served 12,500+ businesses worldwide, maintaining an 85% client retention rate.
Material Management
All of our aluminum profile are made aluminum alloy 6005-T5 with surface protection anodic oxidation, hooks and bolts made of stainless steel 304 (SUS 304).
24-hour service
24/7 engineering support with DFM feedback within 4h.High - quality all - round service
Quality Control
Our expert R&D team ensures compliance with international standards: SGS, AS/NZS 1170, and ISO 9001 certified.
